Product Code: MT2204+12A
Reward Points: 10
Availability: In Stock
Ex Tax: $130.84

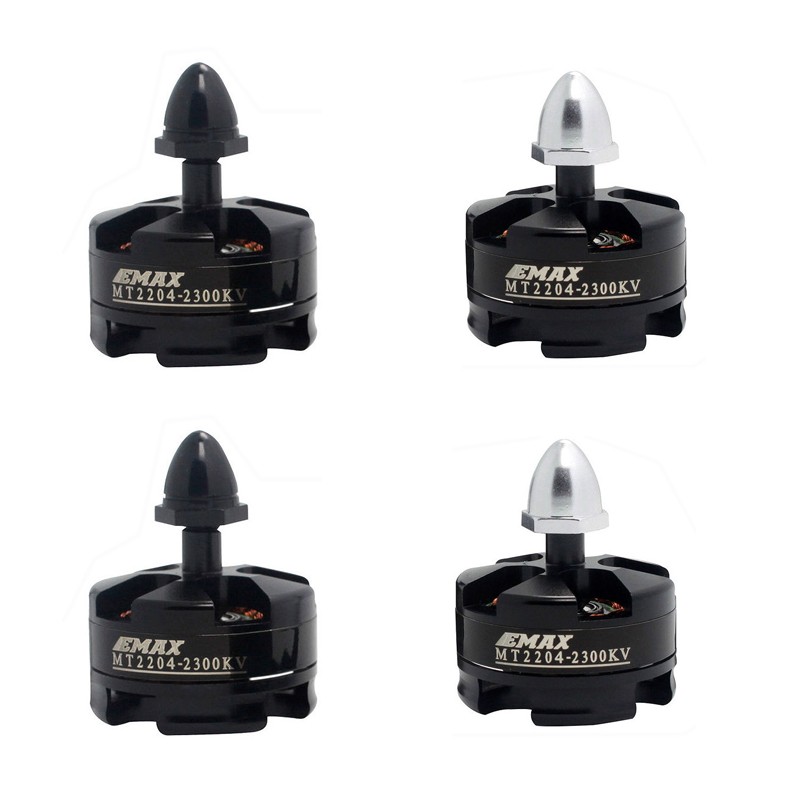

4xEMAX MT2204 2300KV motor+4xEMAX Simonk 12A ESC for 250mm QAV250 Multi QuadCopter Helicopter

item description

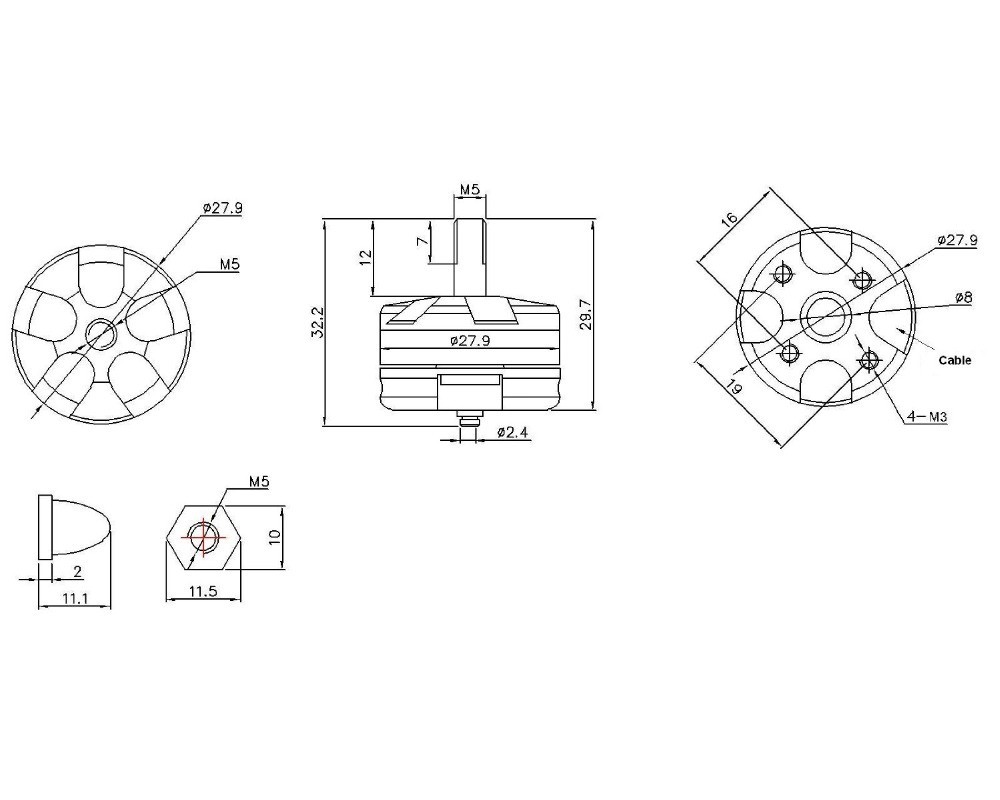

Motor Specifications:

- KV: 2300
- Max Trust: 440g
- No. of cell: 2-3S
- Framework: 12N14P
- Propeller: 5" - 6"
- Length: 32.2mm
- Shaft: 3mm
- Diameter: 27.9mm
- Weight: 25g

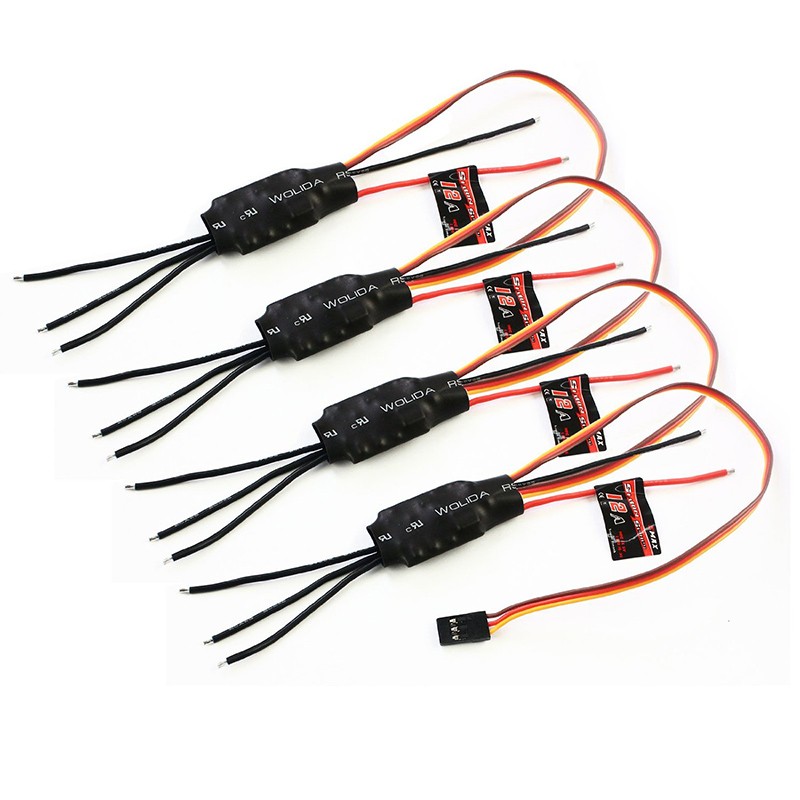

ESC Features:
- Based on Simon K firmware, further optimized to the perfect drive performance.
- Low-voltage protection, over-heat protection and self-check functions.
- Separate power supply for MCU and BEC, enhancing the ESC’s ability of eliminating magnetic interference.
- Parameters of the ESC can be set via program card or transmitter.
- Throttle range can be set to be compatible with different receivers.
- Equipped with built-in linear BEC or switch BEC.
- Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

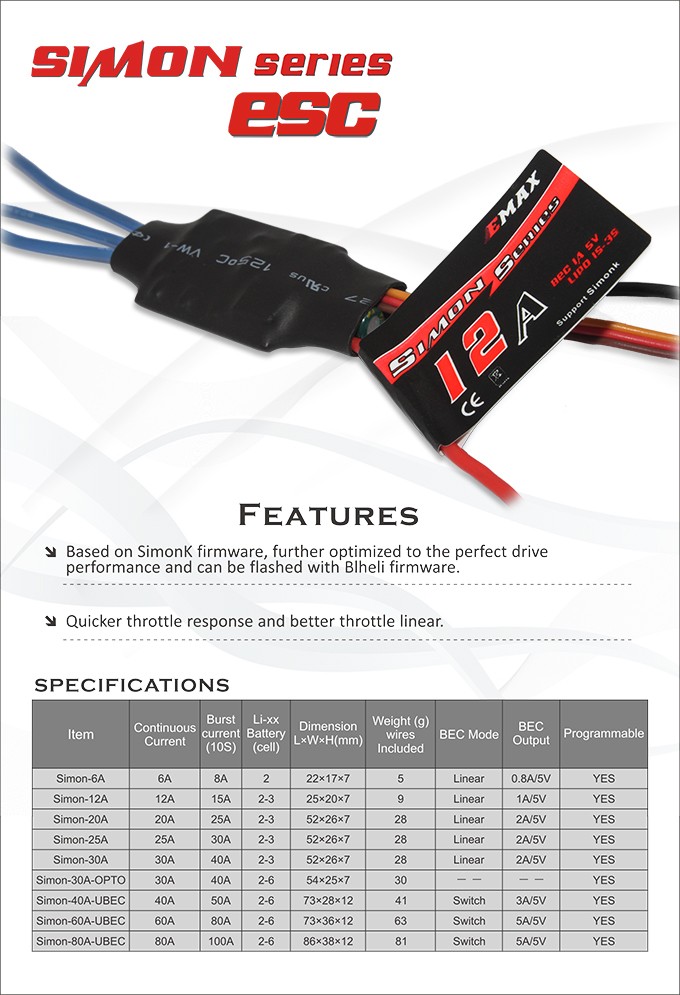

ESC Specifications:
- Continuous Current: 12A
- Burst current (10S): 15A
- Li-xx Battery (cell): 2-3
- Dimension (L*W*H): 25mm x 20mm x 7mm
- Weight wires Included: 9
- BEC Mode: Linear
- BEC Output: 1A/5V
- Programmable: Yes

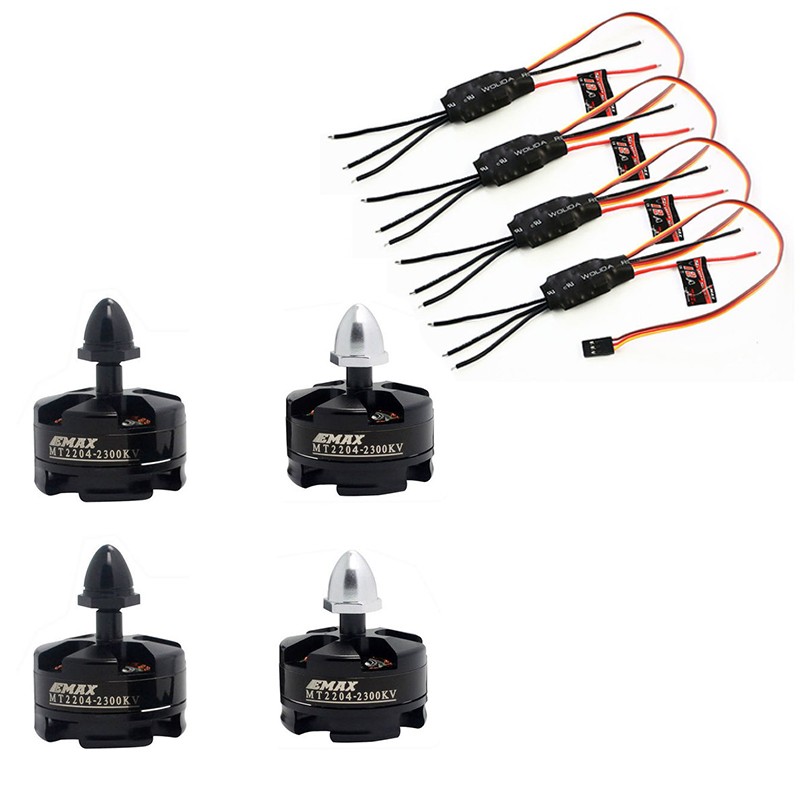

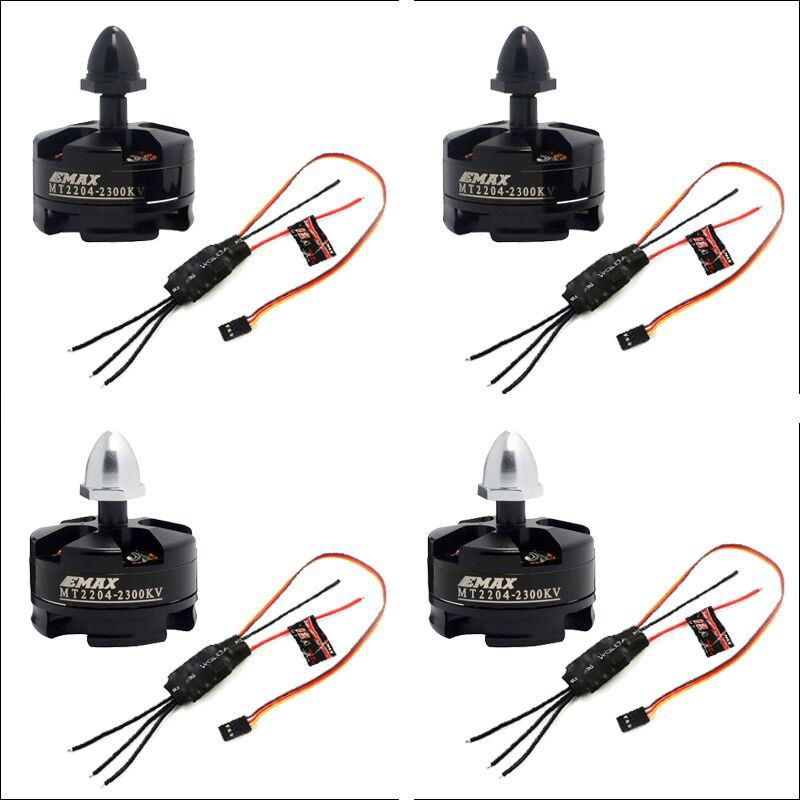

Package Included:

- 4pcs* MT2204 2300KV EMAX Motor CW/CCW 2-Pairs
- 4pcs* EMAX Simonk 12A ESC

item picture
