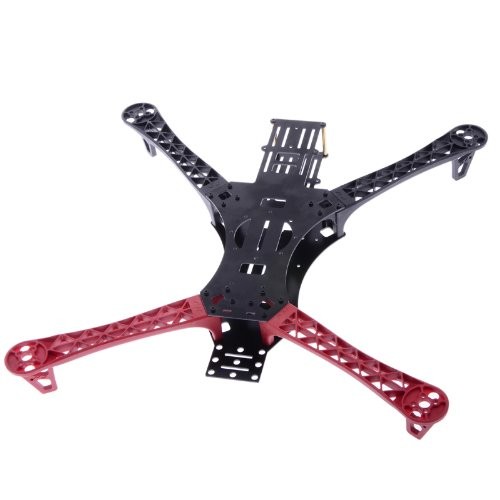

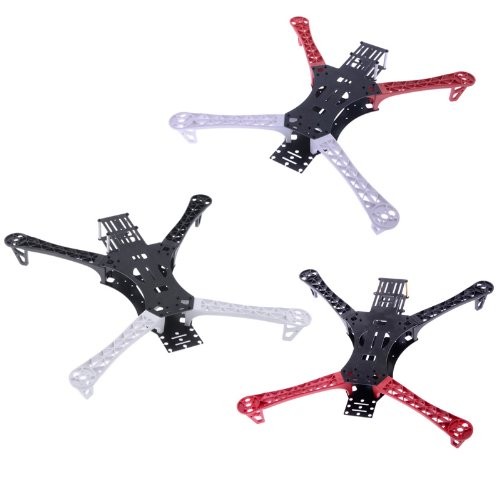

Reptile locust 500 4 axis Multicopter Helicopter DIY Frame Kit For RC FPV Quadcopter Aircraft Drone landing gear 450/550 arm
- Min Arm distance:380mm
- Max Arm distance:480mm
- Material:Glassfiber+ ABS Plastic

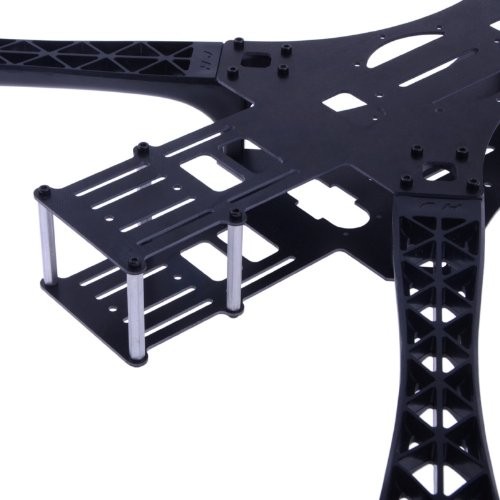

- Center lower plate: 1-4pcs 45 * 45mm flight control board (FF, kk, rabbit, pirate, MWC, etc.)
- With Extend board, the ESC parallel plates or 4-in-1 ESC can be installed on it.
- 2200 mAh battery can be fixed at the end of the lower plate.
- With mounting holes for Wireless Transmitter ,CCD,OSD,GPS antenna,special design for installing NAZA flight control (long hole left for VELCRO to fix the controller), holes for tall landing skill.
- Center upper plate: with cross holes for mounting NAZA GPS and aluminum mounting plate (38 * 38/33 * 33) in front of it for FPV camera.
- Transmitter or remote control receiver and other components can be set at the end of the plate.

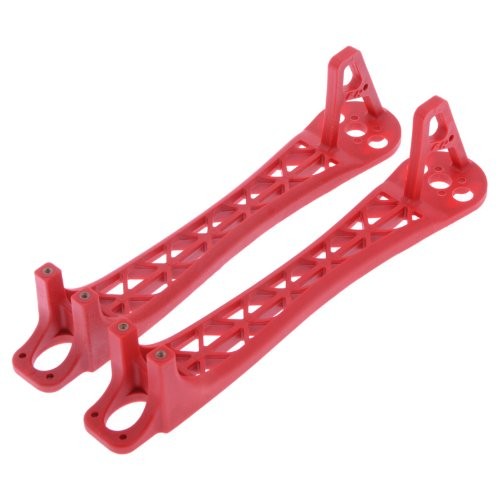

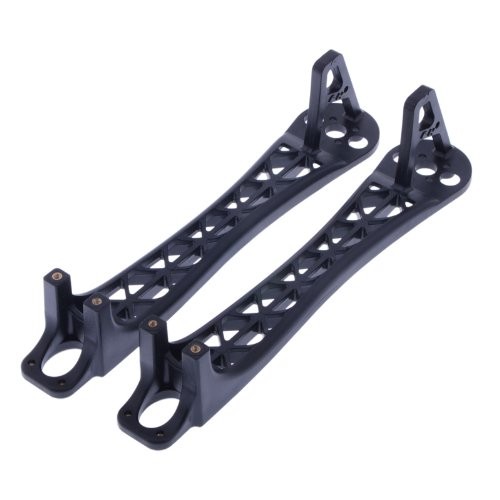

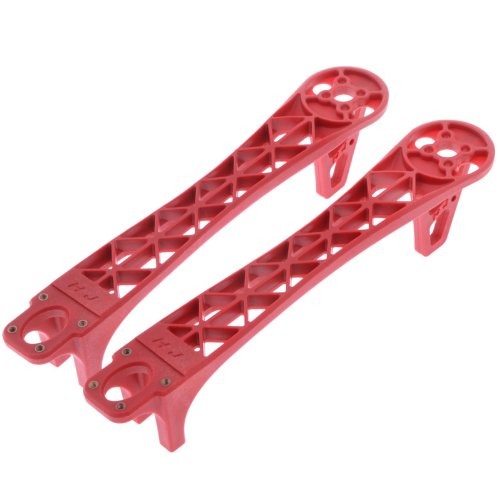

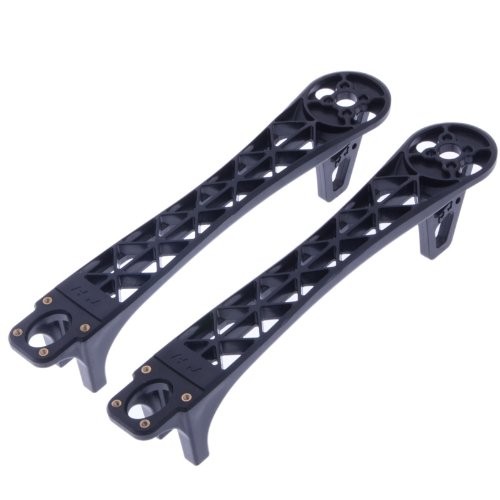

- Arms: similar arms with F450, F550
- Biggest propeller can be used: 12-inch, usually we use 10.11 inch ones
- Recommended motor: 2212.2216.4006.5005
Note: Kit only,not assembled. This set doesn't include any other electronic accessories.
- Frame* 1 Set

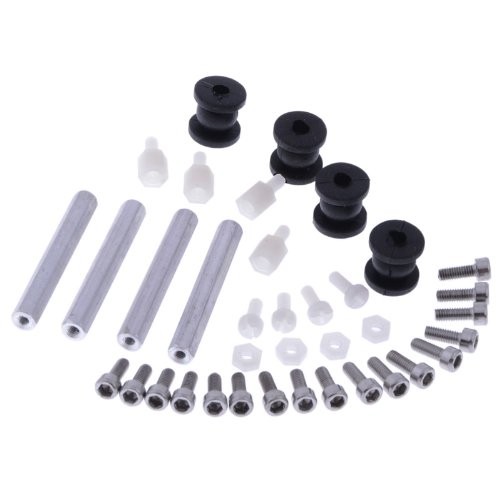

- screws* 1 Pack
